ATtiny13 Microcontroller

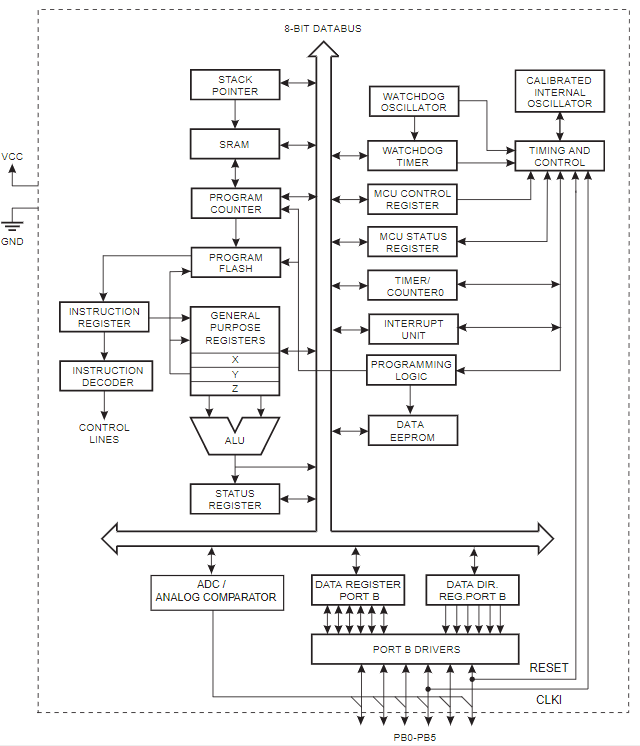

ATtiny13 Microcontroller Overview The ATtiny13 is a low-power 8-bit CMOS microcontroller based on the enhanced AVR RISC architecture. With its advanced instruction set and single-clock cycle instruction execution time, the

ATtiny13 Microcontroller Overview

The ATtiny13 is a low-power 8-bit CMOS microcontroller based on the enhanced AVR RISC architecture. With its advanced instruction set and single-clock cycle instruction execution time, the ATtiny13 achieves a data throughput of up to 1 MIPS/MHz, helping to alleviate the trade-off between power consumption and processing speed in a system.

ATtiny13 Features

High Performance
Low Power Consumption
On-chip Analog Comparator
120 Powerful Instructions
Most Single Clock Cycle Execution
Fully Static Operation
Internal Calibrated Oscillator
Industrial Temperature Range
Enhanced Power-on Reset Circuit
DebugWIRE On-chip Debug System
In-System Programmable via SPI Port
External and Internal Interrupt Sources
Programmable Brown-out Detection Circuit
Programmable Watchdog Timer with Separate On-chip Oscillator
Low Power Idle, ADC Noise Reduction, and Power-down Modes

ATtiny13 Specification

Parameter	Value
Flash Memory	1K bytes
EEPROM	64 bytes
SRAM	64 bytes

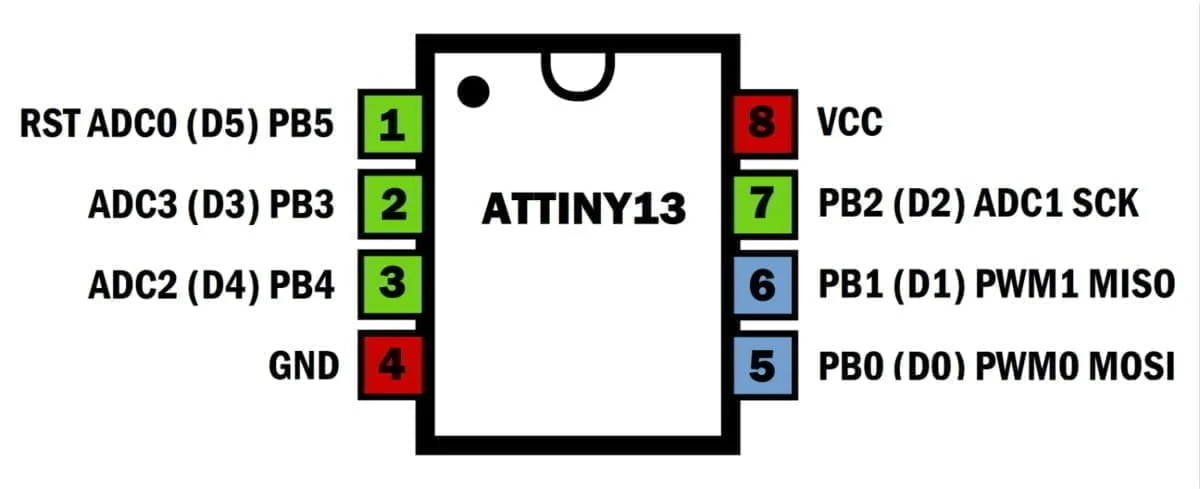

General purpose I/O lines	6
General working registers	32 x 8
Timer/counter	1 * 8-bit (with compare mode)
ADC channels	4 * 10-bit
PWM Channels	2
Operating Voltage	2.7 - 5.5V

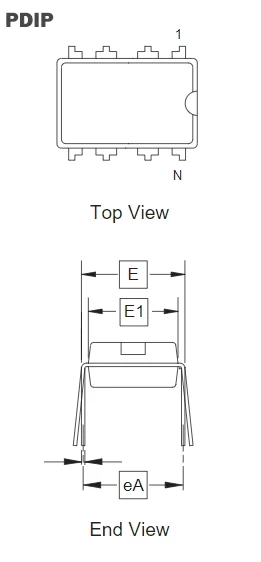

Package	8-pin PDIP/SOIC
